Instalação do Sistema
Instalação do Sistema
O sistema Polare e o banco de dados Postgresql serão executados em contêiner (Docker) conforme descrito em Pré-Requisitos de Instalação.
No momento que esta documentação é escrita, o sistema Polare precisa ser distribuído em um servidor Java web. Neste guia utilizaremos o Tomcat versão 9.
O procedimento de implantação do sistema Polare consiste em criar uma imagem Tomcat 9 e em seguida executar essa imagem via Docker. Essa imagem deverá conter as configurações locais da instituição (conexões com o banco de dados, senhas, mapeamento das rotas da infraestrutura de API, etc.) e o sistema Polare (arquivos .war construídos utilizando a ferramenta Maven a partir do código fonte).
Construção dos artefatos .war (Polare)
O procedimento para gerar os arquivos .war consiste em clonar o código fonte do sistema Polare via Git e executar o Maven para construir esses arquivos .war.
Clonar o código fonte. O seguinte comando deve ser executado a partir de um diretório na linha de comando para clonar o código fonte do sistema Polare (é necessário informar as suas credenciais de acesso):
git clone https://gitcooperacao.info.ufrn.br/referencia/polare.git cd polare git checkout release_0.5.0 -b release_0.5.0

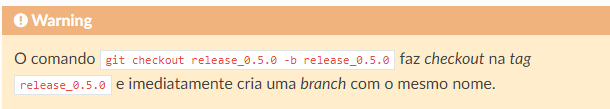

Warning
O comando git checkout release_0.5.0 -b release_0.5.0 faz checkout na tag release_0.5.0 e imediatamente cria uma branch com o mesmo nome.
Construir os arquivos .war utilizando Maven. O seguinte comando deve ser executado a partir do diretório polare (que contém o código fonte do sistema):
./mvnw clean install -Pwar -B -Dmaven.test.skip=true -Dmaven.javadoc.skip=true -Ddependency-check.skip=true
A ferramenta Maven fará o download de todas as dependências necessárias para o projeto finalizando com a construção dos arquivos .war.
Caso ocorra o erro:
Error: Could not find or load main class org.apache.maven.wrapper.MavenWrapperMain Caused by: java.lang.ClassNotFoundException: org.apache.maven.wrapper.MavenWrapperMain
É necessário executar o comando seguinte para configurar o maven wrapper:
mvn -N io.takari:maven:wrapper
Dois arquivos .war serão gerados:
-
polare/polare-frontend-publico/target/polare-frontend-publico.war
-
polare/polare-frontend-restrito/target/polare-frontend-restrito.war
Criação da Imagem Tomcat
Crie um diretório contendo os seguintes arquivos:
-
apache-tomcat-9.0.65 (diretório)
-
copiar-ears-e-iniciar-tomcat.sh
-
Dockerfile
O conteúdo desses arquivos é descrito a seguir.
apache-tomcat-9.0.65
Esse é o diretório contendo o Tomcat 9 descompactado que pode ser obtido no link https://dlcdn.apache.org/tomcat/tomcat-9/v9.0.65/bin/apache-tomcat-9.0.65.zip
copiar-ears-e-iniciar-tomcat.sh
#!/bin/sh cp /polare/deploy/* /opt/tomcat/webapps/ /opt/tomcat/bin/catalina.sh run

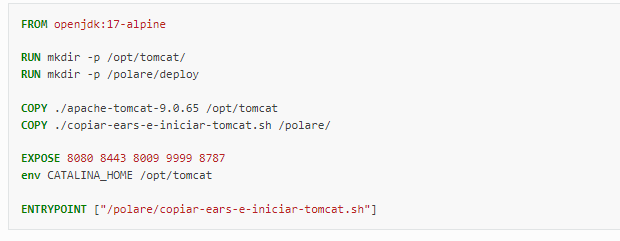

Dockerfile
Os arquivos 1 e 2 serão inseridos na imagem que será criada através do Dockerfile. Neste guia o nome da imagem Tomcat será tomcat-9. Para criar a imagem execute o comando a seguir a partir do diretório contendo os arquivos descritos anteriormente:
docker build -t tomcat-9 .
Execução do Ambiente
Crie um diretório contendo os seguintes arquivos:
-
wars (diretório)
-
docker-compose.yml
-
nginx.conf
-
catalina.sh
O conteúdo desses arquivos é descrito a seguir.
wars (diretório). É necessário copiar os arquivos .war gerados anteriormente para este diretório. Nesta implantação os arquivos .war foram renomeados para polare.war (referente ao arquivo polare-frontend-restrito.war) e polare-publico.war (referente ao arquivo polare-frontend-publico.war).
docker-compose.yml. É necessário fazer ajustes nesse arquivo em função das configurações do ambiente local (as linhas com o comentário # ALTERAR devem ser modificadas).
version: "3.2"
services:
nginx:
image: nginx
hostname: nginx
restart: unless-stopped
ports:
- "80:80"
- "443:443"
environment:
- TZ=America/Belem # ALTERAR
volumes:
- type: bind
source: ./nginx.conf
target: /etc/nginx/conf.d/default.conf
read_only: true
networks:
- rede
depends_on:
- tomcat9
polare-db:
container_name: polare-db
image: postgres:12
hostname: polare-db
ports:
- "5432:5432"
environment:
- POSTGRES_USER=postgres
- POSTGRES_PASSWORD=postgres
healthcheck:
test: [ "CMD-SHELL", "pg_isready -U postgres" ]
interval: 10s
timeout: 5s
retries: 5
restart: unless-stopped
volumes:
- /home/administrador/polare-db:/var/lib/postgresql/data
networks:
- rede
tomcat9:
image: tomcat-9
hostname: tomcat9
restart: unless-stopped
ports:
- "8080:8080"
volumes:
- type: bind
source: ./catalina.sh
target: /opt/tomcat/bin/catalina.sh
read_only: true
- type: bind
source: ${WAR_POLARE}/polare.war # WAR_POLARE é o caminho da pasta "wars"
target: /polare/deploy/polare.war
read_only: true
- type: bind
source: ${WAR_POLARE}/polare-publico.war # WAR_POLARE é o caminho da pasta "wars"
target: /polare/deploy/polare-publico.war
read_only: true
networks:
- rede
networks:
rede:
driver: bridge

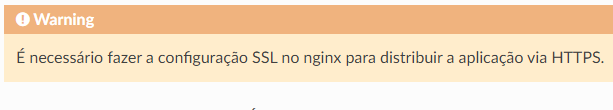

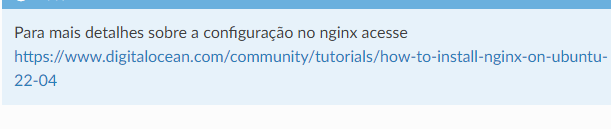

nginx.conf Configuração do nginx. É necessário fazer ajustes nesse arquivo em função das configurações do ambiente local (as linhas com o comentário # ALTERAR devem ser modificadas).
proxy_cache_path /tmp/NGINX_treinamento_cache/ keys_zone=backcache:10m; # ALTERAR
upstream polare {
ip_hash;
server tomcat9:8080;
}
server {
listen 80;
server_name polare-treinamento.ifpa.edu.br; # ALTERAR
client_max_body_size 128M;
access_log /var/log/nginx/polare-treinamento.ifpa.edu.br-80-access.log; # ALTERAR
error_log /var/log/nginx/polare-treinamento.ifpa.edu.br-80-error.log; # ALTERAR
# Redirect all HTTP to HTTPS
location / {
return 301 https://$server_name$request_uri;
}
}
server {
listen 443 ssl http2;
server_name polare-treinamento.ifpa.edu.br; # ALTERAR
client_max_body_size 128M;
access_log /var/log/nginx/polare-treinamento.ifpa.edu.br-443-access.log; # ALTERAR
error_log /var/log/nginx/polare-treinamento.ifpa.edu.br-443-error.log; # ALTERAR
# certificados da instituição
ssl_certificate /etc/nginx/ssl/nginx.crt; # ALTERAR
ssl_certificate_key /etc/nginx/ssl/nginx.key; # ALTERAR
ssl_session_cache shared:SSL:1m;
ssl_prefer_server_ciphers on;
ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
ssl_ciphers ECDH+AESGCM:ECDH+AES256:ECDH+AES128:DH+3DES:!ADH:!AECDH:!MD5;
location = / {
return 302 /polare;
}
location = /polare-publico/ {
return 302 /polare-publico/relatorios;
}
location /polare/ {
proxy_pass http://polare;
proxy_cache backcache;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $remote_addr;
proxy_set_header Host $host;
proxy_set_header X-Real-Port $server_port;
proxy_set_header X-Real-Scheme $scheme;
}
location /polare-publico/ {
proxy_pass http://polare;
proxy_cache backcache;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $remote_addr;
proxy_set_header Host $host;
proxy_set_header X-Real-Port $server_port;
proxy_set_header X-Real-Scheme $scheme;
}
}
catalina.sh Arquivo fundamental referente aos parâmetros de configuração do sistema Polare. É necessário fazer ajustes nesse arquivo em função das configurações do ambiente local (entre as linhas 334 e 380).
1#!/bin/sh
2
3# Licensed to the Apache Software Foundation (ASF) under one or more
4# contributor license agreements. See the NOTICE file distributed with
5# this work for additional information regarding copyright ownership.
6# The ASF licenses this file to You under the Apache License, Version 2.0
7# (the "License"); you may not use this file except in compliance with
8# the License. You may obtain a copy of the License at
9#
10# http://www.apache.org/licenses/LICENSE-2.0
11#
12# Unless required by applicable law or agreed to in writing, software
13# distributed under the License is distributed on an "AS IS" BASIS,
14# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
15# See the License for the specific language governing permissions and
16# limitations under the License.
17
18# -----------------------------------------------------------------------------
19# Control Script for the CATALINA Server
20#
21# For supported commands call "catalina.sh help" or see the usage section at
22# the end of this file.
23#
24# Environment Variable Prerequisites
25#
26# Do not set the variables in this script. Instead put them into a script
27# setenv.sh in CATALINA_BASE/bin to keep your customizations separate.
28#
29# CATALINA_HOME May point at your Catalina "build" directory.
30#
31# CATALINA_BASE (Optional) Base directory for resolving dynamic portions
32# of a Catalina installation. If not present, resolves to
33# the same directory that CATALINA_HOME points to.
34#
35# CATALINA_OUT (Optional) Full path to a file where stdout and stderr
36# will be redirected.
37# Default is $CATALINA_BASE/logs/catalina.out
38#
39# CATALINA_OUT_CMD (Optional) Command which will be executed and receive
40# as its stdin the stdout and stderr from the Tomcat java
41# process. If CATALINA_OUT_CMD is set, the value of
42# CATALINA_OUT will be used as a named pipe.
43# No default.
44# Example (all one line)
45# CATALINA_OUT_CMD="/usr/bin/rotatelogs -f $CATALINA_BASE/logs/catalina.out.%Y-%m-%d.log 86400"
46#
47# CATALINA_OPTS (Optional) Java runtime options used when the "start",
48# "run" or "debug" command is executed.
49# Include here and not in JAVA_OPTS all options, that should
50# only be used by Tomcat itself, not by the stop process,
51# the version command etc.
52# Examples are heap size, GC logging, JMX ports etc.
53#
54# CATALINA_TMPDIR (Optional) Directory path location of temporary directory
55# the JVM should use (java.io.tmpdir). Defaults to
56# $CATALINA_BASE/temp.
57#
58# JAVA_HOME Must point at your Java Development Kit installation.
59# Required to run the with the "debug" argument.
60#
61# JRE_HOME Must point at your Java Runtime installation.
62# Defaults to JAVA_HOME if empty. If JRE_HOME and JAVA_HOME
63# are both set, JRE_HOME is used.
64#
65# JAVA_OPTS (Optional) Java runtime options used when any command
66# is executed.
67# Include here and not in CATALINA_OPTS all options, that
68# should be used by Tomcat and also by the stop process,
69# the version command etc.
70# Most options should go into CATALINA_OPTS.
71#
72# JAVA_ENDORSED_DIRS (Optional) Lists of of colon separated directories
73# containing some jars in order to allow replacement of APIs
74# created outside of the JCP (i.e. DOM and SAX from W3C).
75# It can also be used to update the XML parser implementation.
76# This is only supported for Java <= 8.
77# Defaults to $CATALINA_HOME/endorsed.
78#
79# JPDA_TRANSPORT (Optional) JPDA transport used when the "jpda start"
80# command is executed. The default is "dt_socket".
81#
82# JPDA_ADDRESS (Optional) Java runtime options used when the "jpda start"
83# command is executed. The default is localhost:8000.
84#
85# JPDA_SUSPEND (Optional) Java runtime options used when the "jpda start"
86# command is executed. Specifies whether JVM should suspend
87# execution immediately after startup. Default is "n".
88#
89# JPDA_OPTS (Optional) Java runtime options used when the "jpda start"
90# command is executed. If used, JPDA_TRANSPORT, JPDA_ADDRESS,
91# and JPDA_SUSPEND are ignored. Thus, all required jpda
92# options MUST be specified. The default is:
93#
94# -agentlib:jdwp=transport=$JPDA_TRANSPORT,
95# address=$JPDA_ADDRESS,server=y,suspend=$JPDA_SUSPEND
96#
97# JSSE_OPTS (Optional) Java runtime options used to control the TLS
98# implementation when JSSE is used. Default is:
99# "-Djdk.tls.ephemeralDHKeySize=2048"
100#
101# CATALINA_PID (Optional) Path of the file which should contains the pid
102# of the catalina startup java process, when start (fork) is
103# used
104#
105# CATALINA_LOGGING_CONFIG (Optional) Override Tomcat's logging config file
106# Example (all one line)
107# CATALINA_LOGGING_CONFIG="-Djava.util.logging.config.file=$CATALINA_BASE/conf/logging.properties"
108#
109# LOGGING_CONFIG Deprecated
110# Use CATALINA_LOGGING_CONFIG
111# This is only used if CATALINA_LOGGING_CONFIG is not set
112# and LOGGING_CONFIG starts with "-D..."
113#
114# LOGGING_MANAGER (Optional) Override Tomcat's logging manager
115# Example (all one line)
116# LOGGING_MANAGER="-Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager"
117#
118# UMASK (Optional) Override Tomcat's default UMASK of 0027
119#
120# USE_NOHUP (Optional) If set to the string true the start command will
121# use nohup so that the Tomcat process will ignore any hangup
122# signals. Default is "false" unless running on HP-UX in which
123# case the default is "true"
124# -----------------------------------------------------------------------------
125
126# OS specific support. $var _must_ be set to either true or false.
127cygwin=false
128darwin=false
129os400=false
130hpux=false
131case "`uname`" in
132CYGWIN*) cygwin=true;;
133Darwin*) darwin=true;;
134OS400*) os400=true;;
135HP-UX*) hpux=true;;
136esac
137
138# resolve links - $0 may be a softlink
139PRG="$0"
140
141while [ -h "$PRG" ]; do
142 ls=`ls -ld "$PRG"`
143 link=`expr "$ls" : '.*-> \(.*\)$'`
144 if expr "$link" : '/.*' > /dev/null; then
145 PRG="$link"
146 else
147 PRG=`dirname "$PRG"`/"$link"
148 fi
149done
150
151# Get standard environment variables
152PRGDIR=`dirname "$PRG"`
153
154# Only set CATALINA_HOME if not already set
155[ -z "$CATALINA_HOME" ] && CATALINA_HOME=`cd "$PRGDIR/.." >/dev/null; pwd`
156
157# Copy CATALINA_BASE from CATALINA_HOME if not already set
158[ -z "$CATALINA_BASE" ] && CATALINA_BASE="$CATALINA_HOME"
159
160# Ensure that any user defined CLASSPATH variables are not used on startup,
161# but allow them to be specified in setenv.sh, in rare case when it is needed.
162CLASSPATH=
163
164if [ -r "$CATALINA_BASE/bin/setenv.sh" ]; then
165 . "$CATALINA_BASE/bin/setenv.sh"
166elif [ -r "$CATALINA_HOME/bin/setenv.sh" ]; then
167 . "$CATALINA_HOME/bin/setenv.sh"
168fi
169
170# For Cygwin, ensure paths are in UNIX format before anything is touched
171if $cygwin; then
172 [ -n "$JAVA_HOME" ] && JAVA_HOME=`cygpath --unix "$JAVA_HOME"`
173 [ -n "$JRE_HOME" ] && JRE_HOME=`cygpath --unix "$JRE_HOME"`
174 [ -n "$CATALINA_HOME" ] && CATALINA_HOME=`cygpath --unix "$CATALINA_HOME"`
175 [ -n "$CATALINA_BASE" ] && CATALINA_BASE=`cygpath --unix "$CATALINA_BASE"`
176 [ -n "$CLASSPATH" ] && CLASSPATH=`cygpath --path --unix "$CLASSPATH"`
177fi
178
179# Ensure that neither CATALINA_HOME nor CATALINA_BASE contains a colon
180# as this is used as the separator in the classpath and Java provides no
181# mechanism for escaping if the same character appears in the path.
182case $CATALINA_HOME in
183 *:*) echo "Using CATALINA_HOME: $CATALINA_HOME";
184 echo "Unable to start as CATALINA_HOME contains a colon (:) character";
185 exit 1;
186esac
187case $CATALINA_BASE in
188 *:*) echo "Using CATALINA_BASE: $CATALINA_BASE";
189 echo "Unable to start as CATALINA_BASE contains a colon (:) character";
190 exit 1;
191esac
192
193# For OS400
194if $os400; then
195 # Set job priority to standard for interactive (interactive - 6) by using
196 # the interactive priority - 6, the helper threads that respond to requests
197 # will be running at the same priority as interactive jobs.
198 COMMAND='chgjob job('$JOBNAME') runpty(6)'
199 system $COMMAND
200
201 # Enable multi threading
202 export QIBM_MULTI_THREADED=Y
203fi
204
205# Get standard Java environment variables
206if $os400; then
207 # -r will Only work on the os400 if the files are:
208 # 1. owned by the user
209 # 2. owned by the PRIMARY group of the user
210 # this will not work if the user belongs in secondary groups
211 . "$CATALINA_HOME"/bin/setclasspath.sh
212else
213 if [ -r "$CATALINA_HOME"/bin/setclasspath.sh ]; then
214 . "$CATALINA_HOME"/bin/setclasspath.sh
215 else
216 echo "Cannot find $CATALINA_HOME/bin/setclasspath.sh"
217 echo "This file is needed to run this program"
218 exit 1
219 fi
220fi
221
222# Add on extra jar files to CLASSPATH
223if [ ! -z "$CLASSPATH" ] ; then
224 CLASSPATH="$CLASSPATH":
225fi
226CLASSPATH="$CLASSPATH""$CATALINA_HOME"/bin/bootstrap.jar
227
228if [ -z "$CATALINA_OUT" ] ; then
229 CATALINA_OUT="$CATALINA_BASE"/logs/catalina.out
230fi
231
232if [ -z "$CATALINA_TMPDIR" ] ; then
233 # Define the java.io.tmpdir to use for Catalina
234 CATALINA_TMPDIR="$CATALINA_BASE"/temp
235fi
236
237# Add tomcat-juli.jar to classpath
238# tomcat-juli.jar can be over-ridden per instance
239if [ -r "$CATALINA_BASE/bin/tomcat-juli.jar" ] ; then
240 CLASSPATH=$CLASSPATH:$CATALINA_BASE/bin/tomcat-juli.jar
241else
242 CLASSPATH=$CLASSPATH:$CATALINA_HOME/bin/tomcat-juli.jar
243fi
244
245# Bugzilla 37848: When no TTY is available, don't output to console
246have_tty=0
247if [ -t 0 ]; then
248 have_tty=1
249fi
250
251# For Cygwin, switch paths to Windows format before running java
252if $cygwin; then
253 JAVA_HOME=`cygpath --absolute --windows "$JAVA_HOME"`
254 JRE_HOME=`cygpath --absolute --windows "$JRE_HOME"`
255 CATALINA_HOME=`cygpath --absolute --windows "$CATALINA_HOME"`
256 CATALINA_BASE=`cygpath --absolute --windows "$CATALINA_BASE"`
257 CATALINA_TMPDIR=`cygpath --absolute --windows "$CATALINA_TMPDIR"`
258 CLASSPATH=`cygpath --path --windows "$CLASSPATH"`
259 [ -n "$JAVA_ENDORSED_DIRS" ] && JAVA_ENDORSED_DIRS=`cygpath --path --windows "$JAVA_ENDORSED_DIRS"`
260fi
261
262if [ -z "$JSSE_OPTS" ] ; then
263 JSSE_OPTS="-Djdk.tls.ephemeralDHKeySize=2048"
264fi
265JAVA_OPTS="$JAVA_OPTS $JSSE_OPTS"
266
267# Register custom URL handlers
268# Do this here so custom URL handles (specifically 'war:...') can be used in the security policy
269JAVA_OPTS="$JAVA_OPTS -Djava.protocol.handler.pkgs=org.apache.catalina.webresources"
270
271# Check for the deprecated LOGGING_CONFIG
272# Only use it if CATALINA_LOGGING_CONFIG is not set and LOGGING_CONFIG starts with "-D..."
273if [ -z "$CATALINA_LOGGING_CONFIG" ]; then
274 case $LOGGING_CONFIG in
275 -D*) CATALINA_LOGGING_CONFIG="$LOGGING_CONFIG"
276 esac
277fi
278
279# Set juli LogManager config file if it is present and an override has not been issued
280if [ -z "$CATALINA_LOGGING_CONFIG" ]; then
281 if [ -r "$CATALINA_BASE"/conf/logging.properties ]; then
282 CATALINA_LOGGING_CONFIG="-Djava.util.logging.config.file=$CATALINA_BASE/conf/logging.properties"
283 else
284 # Bugzilla 45585
285 CATALINA_LOGGING_CONFIG="-Dnop"
286 fi
287fi
288
289if [ -z "$LOGGING_MANAGER" ]; then
290 LOGGING_MANAGER="-Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager"
291fi
292
293# Set UMASK unless it has been overridden
294if [ -z "$UMASK" ]; then
295 UMASK="0027"
296fi
297umask $UMASK
298
299# Java 9 no longer supports the java.endorsed.dirs
300# system property. Only try to use it if
301# JAVA_ENDORSED_DIRS was explicitly set
302# or CATALINA_HOME/endorsed exists.
303ENDORSED_PROP=ignore.endorsed.dirs
304if [ -n "$JAVA_ENDORSED_DIRS" ]; then
305 ENDORSED_PROP=java.endorsed.dirs
306fi
307if [ -d "$CATALINA_HOME/endorsed" ]; then
308 ENDORSED_PROP=java.endorsed.dirs
309fi
310
311# Make the umask available when using the org.apache.catalina.security.SecurityListener
312JAVA_OPTS="$JAVA_OPTS -Dorg.apache.catalina.security.SecurityListener.UMASK=`umask`"
313
314if [ -z "$USE_NOHUP" ]; then
315 if $hpux; then
316 USE_NOHUP="true"
317 else
318 USE_NOHUP="false"
319 fi
320fi
321unset _NOHUP
322if [ "$USE_NOHUP" = "true" ]; then
323 _NOHUP="nohup"
324fi
325
326# Add the JAVA 9 specific start-up parameters required by Tomcat
327JDK_JAVA_OPTIONS="$JDK_JAVA_OPTIONS --add-opens=java.base/java.lang=ALL-UNNAMED"
328JDK_JAVA_OPTIONS="$JDK_JAVA_OPTIONS --add-opens=java.base/java.io=ALL-UNNAMED"
329JDK_JAVA_OPTIONS="$JDK_JAVA_OPTIONS --add-opens=java.base/java.util=ALL-UNNAMED"
330JDK_JAVA_OPTIONS="$JDK_JAVA_OPTIONS --add-opens=java.base/java.util.concurrent=ALL-UNNAMED"
331JDK_JAVA_OPTIONS="$JDK_JAVA_OPTIONS --add-opens=java.rmi/sun.rmi.transport=ALL-UNNAMED"
332export JDK_JAVA_OPTIONS
333
334# configuração BANCO DE DADOS
335CATALINA_OPTS="$CATALINA_OPTS -Dspring.datasource.username=postgres"
336CATALINA_OPTS="$CATALINA_OPTS -Dspring.datasource.password=postgres"
337CATALINA_OPTS="$CATALINA_OPTS -Dspring.datasource.url=jdbc:postgresql://polare-db:5432/polaredb"
338
339# configuração OAUTH
340CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.ufrn-api.provider=ufrn"
341CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.ufrn-api.client-id=ALTERAR" # ALTERAR
342CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.ufrn-api.client-secret=ALTERAR" # ALTERAR
343CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.ufrn-api.authorization-grant-type=client_credentials"
344CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.ufrn.client-id=ALTERAR" # ALTERAR
345CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.ufrn.client-secret=ALTERAR" # ALTERAR
346CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.ufrn.scope=read"
347CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.ufrn.authorization-grant-type=authorization_code"
348CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.ufrn.redirect-uri=http://ALTERAR/polare/login/oauth2/code/ufrn" # ALTERAR
349CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.provider.ufrn.authorization-uri=https://ALTERAR/authz-server/oauth/authorize" # ALTERAR
350CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.provider.ufrn.token-uri=https://ALTERAR/authz-server/oauth/token" # ALTERAR
351CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.provider.ufrn.user-info-uri=https://ALTERAR/security/v2/usuarios/me" # ALTERAR
352CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.provider.ufrn.user-name-attribute=pessoa"
353CATALINA_OPTS="$CATALINA_OPTS -Dapp.auth.logout.ufrn.logout-uri=https://ALTERAR/authz-server/j_spring_cas_security_logout?service=http://ALTERAR/polare-publico" # ALTERAR
354
355# configuração API serviços
356CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.api-key=ALTERAR" # ALTERAR
357CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.services.arquivos=https://ALTERAR/file/v1/arquivos" # ALTERAR
358CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.services.unidades=https://ALTERAR/unidade/v1/unidades" # ALTERAR
359CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.services.responsaveis=https://ALTERAR/pessoa/v1/responsaveis" # ALTERAR
360CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.services.servidor-localizacoes=https://ALTERAR/pessoa/v1/localizacoes-servidores" # ALTERAR
361CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.services.usuarios-sig=https://ALTERAR/usuario/v1/usuarios" # ALTERAR
362CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.services.servidores=https://ALTERAR/pessoa/v1/servidores" # ALTERAR
363CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.services.unidades-lotacao=https://ALTERAR/pessoa/v1/unidades-lotacao" # ALTERAR
364CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.services.unidades-exercicios=https://ALTERAR/pessoa/v1/unidades-exercicios" # ALTERAR
365CATALINA_OPTS="$CATALINA_OPTS -Dapp.api.ufrn.services.unidades-localizacao=https://ALTERAR/pessoa/v1/unidades-localizacao" # ALTERAR
366CATALINA_OPTS="$CATALINA_OPTS -Dapp.polare-url=http://ALTERAR/polare/login" # ALTERAR
367CATALINA_OPTS="$CATALINA_OPTS -Dapp.polare-publico-url=http://ALTERAR/polare-publico" # ALTERAR
368
369# configuração GOVBR
370CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.govbr.client-id=ALTERAR" # ALTERAR
371CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.govbr.client-secret=ALTERAR" # ALTERAR
372CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.govbr.scope=openid+\(email/phone\)+profile+govbr_empresa+govbr_confiabilidades"
373CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.govbr.authorization-grant-type=authorization_code"
374CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.registration.govbr.redirect-uri=http://ALTERAR/polare/login/oauth2/code/govbr" # ALTERAR
375CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.provider.govbr.authorization-uri=https://sso.staging.acesso.gov.br/authorize"
376CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.provider.govbr.token-uri=https://sso.staging.acesso.gov.br/token"
377CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.provider.govbr.jwk-set-uri=https://sso.staging.acesso.gov.br/jwk"
378CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.provider.govbr.user-info-uri=https://sso.staging.acesso.gov.br/userinfo"
379CATALINA_OPTS="$CATALINA_OPTS -Dspring.security.oauth2.client.provider.govbr.user-name-attribute=name"
380CATALINA_OPTS="$CATALINA_OPTS -Dapp.auth.logout.govbr.logout-uri=https://sso.staging.acesso.gov.br/logout?post_logout_redirect_uri=http://ALTERAR/polare" # ALTERAR
381export CATALINA_OPTS
382
383# ----- Execute The Requested Command -----------------------------------------
384
385# Bugzilla 37848: only output this if we have a TTY
386if [ $have_tty -eq 1 ]; then
387 echo "Using CATALINA_BASE: $CATALINA_BASE"
388 echo "Using CATALINA_HOME: $CATALINA_HOME"
389 echo "Using CATALINA_TMPDIR: $CATALINA_TMPDIR"
390 if [ "$1" = "debug" ] ; then
391 echo "Using JAVA_HOME: $JAVA_HOME"
392 else
393 echo "Using JRE_HOME: $JRE_HOME"
394 fi
395 echo "Using CLASSPATH: $CLASSPATH"
396 echo "Using CATALINA_OPTS: $CATALINA_OPTS"
397 if [ ! -z "$CATALINA_PID" ]; then
398 echo "Using CATALINA_PID: $CATALINA_PID"
399 fi
400fi
401
402if [ "$1" = "jpda" ] ; then
403 if [ -z "$JPDA_TRANSPORT" ]; then
404 JPDA_TRANSPORT="dt_socket"
405 fi
406 if [ -z "$JPDA_ADDRESS" ]; then
407 JPDA_ADDRESS="localhost:8000"
408 fi
409 if [ -z "$JPDA_SUSPEND" ]; then
410 JPDA_SUSPEND="n"
411 fi
412 if [ -z "$JPDA_OPTS" ]; then
413 JPDA_OPTS="-agentlib:jdwp=transport=$JPDA_TRANSPORT,address=$JPDA_ADDRESS,server=y,suspend=$JPDA_SUSPEND"
414 fi
415 CATALINA_OPTS="$JPDA_OPTS $CATALINA_OPTS"
416 shift
417fi
418
419if [ "$1" = "debug" ] ; then
420 if $os400; then
421 echo "Debug command not available on OS400"
422 exit 1
423 else
424 shift
425 if [ "$1" = "-security" ] ; then
426 if [ $have_tty -eq 1 ]; then
427 echo "Using Security Manager"
428 fi
429 shift
430 eval exec "\"$_RUNJDB\"" "\"$CATALINA_LOGGING_CONFIG\"" $LOGGING_MANAGER "$JAVA_OPTS" "$CATALINA_OPTS" \
431 -D$ENDORSED_PROP="$JAVA_ENDORSED_DIRS" \
432 -classpath "$CLASSPATH" \
433 -sourcepath "$CATALINA_HOME"/../../java \
434 -Djava.security.manager \
435 -Djava.security.policy=="$CATALINA_BASE"/conf/catalina.policy \
436 -Dcatalina.base="$CATALINA_BASE" \
437 -Dcatalina.home="$CATALINA_HOME" \
438 -Djava.io.tmpdir="$CATALINA_TMPDIR" \
439 org.apache.catalina.startup.Bootstrap "$@" start
440 else
441 eval exec "\"$_RUNJDB\"" "\"$CATALINA_LOGGING_CONFIG\"" $LOGGING_MANAGER "$JAVA_OPTS" "$CATALINA_OPTS" \
442 -D$ENDORSED_PROP="$JAVA_ENDORSED_DIRS" \
443 -classpath "$CLASSPATH" \
444 -sourcepath "$CATALINA_HOME"/../../java \
445 -Dcatalina.base="$CATALINA_BASE" \
446 -Dcatalina.home="$CATALINA_HOME" \
447 -Djava.io.tmpdir="$CATALINA_TMPDIR" \
448 org.apache.catalina.startup.Bootstrap "$@" start
449 fi
450 fi
451
452elif [ "$1" = "run" ]; then
453
454 shift
455 if [ "$1" = "-security" ] ; then
456 if [ $have_tty -eq 1 ]; then
457 echo "Using Security Manager"
458 fi
459 shift
460 eval exec "\"$_RUNJAVA\"" "\"$CATALINA_LOGGING_CONFIG\"" $LOGGING_MANAGER "$JAVA_OPTS" "$CATALINA_OPTS" \
461 -D$ENDORSED_PROP="\"$JAVA_ENDORSED_DIRS\"" \
462 -classpath "\"$CLASSPATH\"" \
463 -Djava.security.manager \
464 -Djava.security.policy=="\"$CATALINA_BASE/conf/catalina.policy\"" \
465 -Dcatalina.base="\"$CATALINA_BASE\"" \
466 -Dcatalina.home="\"$CATALINA_HOME\"" \
467 -Djava.io.tmpdir="\"$CATALINA_TMPDIR\"" \
468 org.apache.catalina.startup.Bootstrap "$@" start
469 else
470 eval exec "\"$_RUNJAVA\"" "\"$CATALINA_LOGGING_CONFIG\"" $LOGGING_MANAGER "$JAVA_OPTS" "$CATALINA_OPTS" \
471 -D$ENDORSED_PROP="\"$JAVA_ENDORSED_DIRS\"" \
472 -classpath "\"$CLASSPATH\"" \
473 -Dcatalina.base="\"$CATALINA_BASE\"" \
474 -Dcatalina.home="\"$CATALINA_HOME\"" \
475 -Djava.io.tmpdir="\"$CATALINA_TMPDIR\"" \
476 org.apache.catalina.startup.Bootstrap "$@" start
477 fi
478
479elif [ "$1" = "start" ] ; then
480
481 if [ ! -z "$CATALINA_PID" ]; then
482 if [ -f "$CATALINA_PID" ]; then
483 if [ -s "$CATALINA_PID" ]; then
484 echo "Existing PID file found during start."
485 if [ -r "$CATALINA_PID" ]; then
486 PID=`cat "$CATALINA_PID"`
487 ps -p $PID >/dev/null 2>&1
488 if [ $? -eq 0 ] ; then
489 echo "Tomcat appears to still be running with PID $PID. Start aborted."
490 echo "If the following process is not a Tomcat process, remove the PID file and try again:"
491 ps -f -p $PID
492 exit 1
493 else
494 echo "Removing/clearing stale PID file."
495 rm -f "$CATALINA_PID" >/dev/null 2>&1
496 if [ $? != 0 ]; then
497 if [ -w "$CATALINA_PID" ]; then
498 cat /dev/null > "$CATALINA_PID"
499 else
500 echo "Unable to remove or clear stale PID file. Start aborted."
501 exit 1
502 fi
503 fi
504 fi
505 else
506 echo "Unable to read PID file. Start aborted."
507 exit 1
508 fi
509 else
510 rm -f "$CATALINA_PID" >/dev/null 2>&1
511 if [ $? != 0 ]; then
512 if [ ! -w "$CATALINA_PID" ]; then
513 echo "Unable to remove or write to empty PID file. Start aborted."
514 exit 1
515 fi
516 fi
517 fi
518 fi
519 fi
520
521 shift
522 if [ -z "$CATALINA_OUT_CMD" ] ; then
523 touch "$CATALINA_OUT"
524 else
525 if [ ! -e "$CATALINA_OUT" ]; then
526 if ! mkfifo "$CATALINA_OUT"; then
527 echo "cannot create named pipe $CATALINA_OUT. Start aborted."
528 exit 1
529 fi
530 elif [ ! -p "$CATALINA_OUT" ]; then
531 echo "$CATALINA_OUT exists and is not a named pipe. Start aborted."
532 exit 1
533 fi
534 $CATALINA_OUT_CMD <"$CATALINA_OUT" &
535 fi
536 if [ "$1" = "-security" ] ; then
537 if [ $have_tty -eq 1 ]; then
538 echo "Using Security Manager"
539 fi
540 shift
541 eval $_NOHUP "\"$_RUNJAVA\"" "\"$CATALINA_LOGGING_CONFIG\"" $LOGGING_MANAGER "$JAVA_OPTS" "$CATALINA_OPTS" \
542 -D$ENDORSED_PROP="\"$JAVA_ENDORSED_DIRS\"" \
543 -classpath "\"$CLASSPATH\"" \
544 -Djava.security.manager \
545 -Djava.security.policy=="\"$CATALINA_BASE/conf/catalina.policy\"" \
546 -Dcatalina.base="\"$CATALINA_BASE\"" \
547 -Dcatalina.home="\"$CATALINA_HOME\"" \
548 -Djava.io.tmpdir="\"$CATALINA_TMPDIR\"" \
549 org.apache.catalina.startup.Bootstrap "$@" start \
550 >> "$CATALINA_OUT" 2>&1 "&"
551
552 else
553 eval $_NOHUP "\"$_RUNJAVA\"" "\"$CATALINA_LOGGING_CONFIG\"" $LOGGING_MANAGER "$JAVA_OPTS" "$CATALINA_OPTS" \
554 -D$ENDORSED_PROP="\"$JAVA_ENDORSED_DIRS\"" \
555 -classpath "\"$CLASSPATH\"" \
556 -Dcatalina.base="\"$CATALINA_BASE\"" \
557 -Dcatalina.home="\"$CATALINA_HOME\"" \
558 -Djava.io.tmpdir="\"$CATALINA_TMPDIR\"" \
559 org.apache.catalina.startup.Bootstrap "$@" start \
560 >> "$CATALINA_OUT" 2>&1 "&"
561
562 fi
563
564 if [ ! -z "$CATALINA_PID" ]; then
565 echo $! > "$CATALINA_PID"
566 fi
567
568 echo "Tomcat started."
569
570elif [ "$1" = "stop" ] ; then
571
572 shift
573
574 SLEEP=5
575 if [ ! -z "$1" ]; then
576 echo $1 | grep "[^0-9]" >/dev/null 2>&1
577 if [ $? -gt 0 ]; then
578 SLEEP=$1
579 shift
580 fi
581 fi
582
583 FORCE=0
584 if [ "$1" = "-force" ]; then
585 shift
586 FORCE=1
587 fi
588
589 if [ ! -z "$CATALINA_PID" ]; then
590 if [ -f "$CATALINA_PID" ]; then
591 if [ -s "$CATALINA_PID" ]; then
592 kill -0 `cat "$CATALINA_PID"` >/dev/null 2>&1
593 if [ $? -gt 0 ]; then
594 echo "PID file found but either no matching process was found or the current user does not have permission to stop the process. Stop aborted."
595 exit 1
596 fi
597 else
598 echo "PID file is empty and has been ignored."
599 fi
600 else
601 echo "\$CATALINA_PID was set but the specified file does not exist. Is Tomcat running? Stop aborted."
602 exit 1
603 fi
604 fi
605
606 eval "\"$_RUNJAVA\"" $LOGGING_MANAGER "$JAVA_OPTS" \
607 -D$ENDORSED_PROP="\"$JAVA_ENDORSED_DIRS\"" \
608 -classpath "\"$CLASSPATH\"" \
609 -Dcatalina.base="\"$CATALINA_BASE\"" \
610 -Dcatalina.home="\"$CATALINA_HOME\"" \
611 -Djava.io.tmpdir="\"$CATALINA_TMPDIR\"" \
612 org.apache.catalina.startup.Bootstrap "$@" stop
613
614 # stop failed. Shutdown port disabled? Try a normal kill.
615 if [ $? != 0 ]; then
616 if [ ! -z "$CATALINA_PID" ]; then
617 echo "The stop command failed. Attempting to signal the process to stop through OS signal."
618 kill -15 `cat "$CATALINA_PID"` >/dev/null 2>&1
619 fi
620 fi
621
622 if [ ! -z "$CATALINA_PID" ]; then
623 if [ -f "$CATALINA_PID" ]; then
624 while [ $SLEEP -ge 0 ]; do
625 kill -0 `cat "$CATALINA_PID"` >/dev/null 2>&1
626 if [ $? -gt 0 ]; then
627 rm -f "$CATALINA_PID" >/dev/null 2>&1
628 if [ $? != 0 ]; then
629 if [ -w "$CATALINA_PID" ]; then
630 cat /dev/null > "$CATALINA_PID"
631 # If Tomcat has stopped don't try and force a stop with an empty PID file
632 FORCE=0
633 else
634 echo "The PID file could not be removed or cleared."
635 fi
636 fi
637 echo "Tomcat stopped."
638 break
639 fi
640 if [ $SLEEP -gt 0 ]; then
641 sleep 1
642 fi
643 if [ $SLEEP -eq 0 ]; then
644 echo "Tomcat did not stop in time."
645 if [ $FORCE -eq 0 ]; then
646 echo "PID file was not removed."
647 fi
648 echo "To aid diagnostics a thread dump has been written to standard out."
649 kill -3 `cat "$CATALINA_PID"`
650 fi
651 SLEEP=`expr $SLEEP - 1 `
652 done
653 fi
654 fi
655
656 KILL_SLEEP_INTERVAL=5
657 if [ $FORCE -eq 1 ]; then
658 if [ -z "$CATALINA_PID" ]; then
659 echo "Kill failed: \$CATALINA_PID not set"
660 else
661 if [ -f "$CATALINA_PID" ]; then
662 PID=`cat "$CATALINA_PID"`
663 echo "Killing Tomcat with the PID: $PID"
664 kill -9 $PID
665 while [ $KILL_SLEEP_INTERVAL -ge 0 ]; do
666 kill -0 `cat "$CATALINA_PID"` >/dev/null 2>&1
667 if [ $? -gt 0 ]; then
668 rm -f "$CATALINA_PID" >/dev/null 2>&1
669 if [ $? != 0 ]; then
670 if [ -w "$CATALINA_PID" ]; then
671 cat /dev/null > "$CATALINA_PID"
672 else
673 echo "The PID file could not be removed."
674 fi
675 fi
676 echo "The Tomcat process has been killed."
677 break
678 fi
679 if [ $KILL_SLEEP_INTERVAL -gt 0 ]; then
680 sleep 1
681 fi
682 KILL_SLEEP_INTERVAL=`expr $KILL_SLEEP_INTERVAL - 1 `
683 done
684 if [ $KILL_SLEEP_INTERVAL -lt 0 ]; then
685 echo "Tomcat has not been killed completely yet. The process might be waiting on some system call or might be UNINTERRUPTIBLE."
686 fi
687 fi
688 fi
689 fi
690
691elif [ "$1" = "configtest" ] ; then
692
693 eval "\"$_RUNJAVA\"" $LOGGING_MANAGER "$JAVA_OPTS" \
694 -D$ENDORSED_PROP="\"$JAVA_ENDORSED_DIRS\"" \
695 -classpath "\"$CLASSPATH\"" \
696 -Dcatalina.base="\"$CATALINA_BASE\"" \
697 -Dcatalina.home="\"$CATALINA_HOME\"" \
698 -Djava.io.tmpdir="\"$CATALINA_TMPDIR\"" \
699 org.apache.catalina.startup.Bootstrap configtest
700 result=$?
701 if [ $result -ne 0 ]; then
702 echo "Configuration error detected!"
703 fi
704 exit $result
705
706elif [ "$1" = "version" ] ; then
707
708 "$_RUNJAVA" \
709 -classpath "$CATALINA_HOME/lib/catalina.jar" \
710 org.apache.catalina.util.ServerInfo
711
712else
713
714 echo "Usage: catalina.sh ( commands ... )"
715 echo "commands:"
716 if $os400; then
717 echo " debug Start Catalina in a debugger (not available on OS400)"
718 echo " debug -security Debug Catalina with a security manager (not available on OS400)"
719 else
720 echo " debug Start Catalina in a debugger"
721 echo " debug -security Debug Catalina with a security manager"
722 fi
723 echo " jpda start Start Catalina under JPDA debugger"
724 echo " run Start Catalina in the current window"
725 echo " run -security Start in the current window with security manager"
726 echo " start Start Catalina in a separate window"
727 echo " start -security Start in a separate window with security manager"
728 echo " stop Stop Catalina, waiting up to 5 seconds for the process to end"
729 echo " stop n Stop Catalina, waiting up to n seconds for the process to end"
730 echo " stop -force Stop Catalina, wait up to 5 seconds and then use kill -KILL if still running"
731 echo " stop n -force Stop Catalina, wait up to n seconds and then use kill -KILL if still running"
732 echo " configtest Run a basic syntax check on server.xml - check exit code for result"
733 echo " version What version of tomcat are you running?"
734 echo "Note: Waiting for the process to end and use of the -force option require that \$CATALINA_PID is defined"
735 exit 1
736
737fi
O seguinte comando deve ser executado no diretório que contém os arquivos anteriores para criar os contêiners e infraestrutura necessária para o funcionamento do sistema Polare:
docker-compose up -d
Tela de login do sistema Polare
Área pública sistema Polare
Warning
O login no sistema Polare só poderá ser efetuado se uma infraestrutura OAUTH estiver instalada e configurada. As duas opções atualmente são a infraestrutura fornecida pela UFRN (descrita na sessão Pré-Requisitos de Instalação), ou o login único pelo GOVBR.
